Identifying Reverse Causation and Feedback Loops

The Data

Counties with higher chronic disease rates tend to have lower employment rates. At first glance, this suggests poor health leads to unemployment. But could it be the other way around? (Data are simulated for illustration.)

Chronic Disease Rate vs Employment Rate

Rural Counties

Urban Counties

A clear negative correlation.

But does sickness cause job loss, or does job loss cause sickness?

Reverse Causation

We might assume X causes Y, but the causal arrow might actually point the other way. In health economics, this problem appears constantly: does healthcare improve outcomes, or do healthier people seek more care?

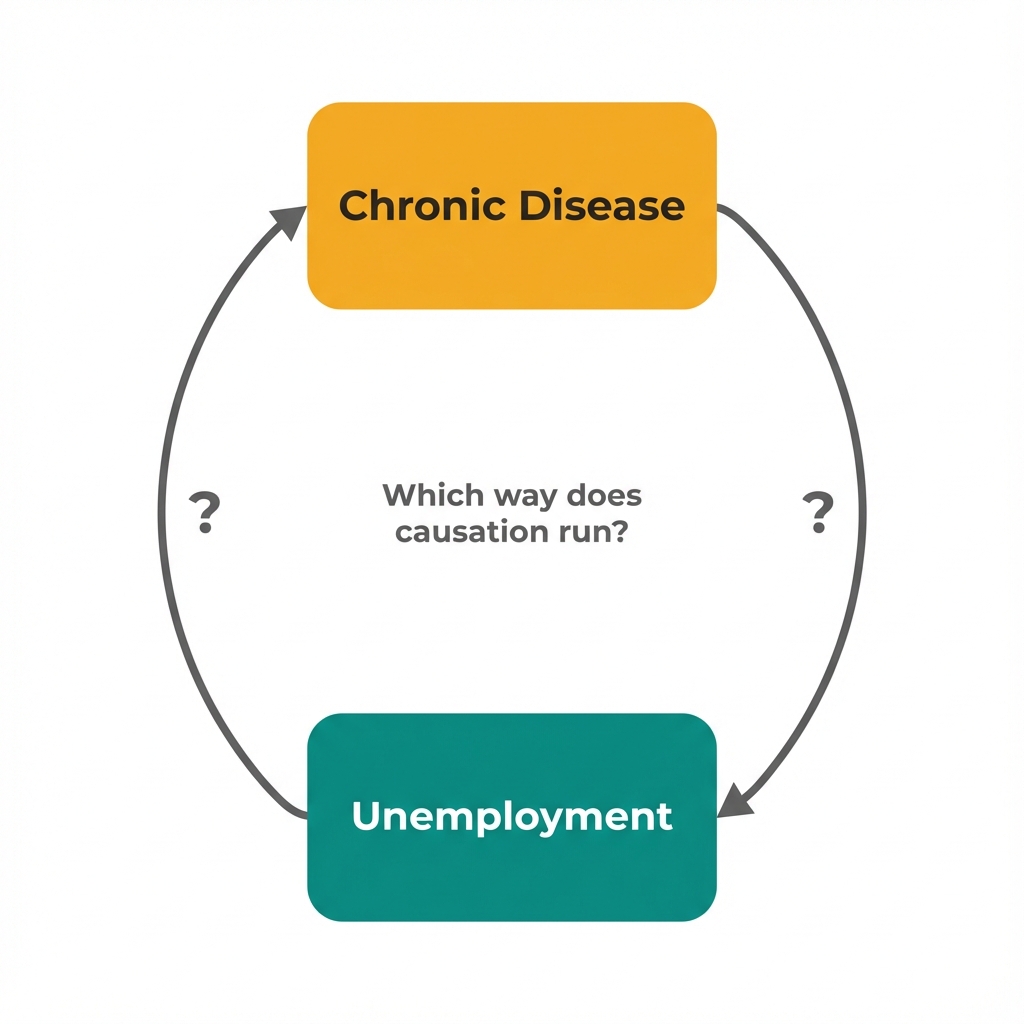

Diagram showing two possible causal directions: Disease causing Unemployment, or Unemployment causing Disease, with question marks on both arrows

Two equally plausible stories from the same correlation.

Two Possible Stories

Disease leads to unemployment

Chronic illness reduces work capacity. People with diabetes, heart disease, or depression may struggle to maintain employment.

Unemployment leads to disease

Job loss reduces income and insurance access. Stress, poor diet, and delayed care increase chronic disease risk.

The identification problem: Cross-sectional data showing correlation between X and Y cannot tell us whether X causes Y, Y causes X, or both influence each other. The same regression coefficient is consistent with either causal story.

Both directions are plausible.

What if both are true at the same time?

Feedback Loops

When X causes Y and Y causes X simultaneously, you get a feedback loop. Small changes amplify over time. Economists call this an equilibrium system. Adjust the parameters below to see how loops behave.

Disease to Unemployment

0.40

Unemployment to Disease

0.30

Loop Dynamics

Initial Disease 15%

Initial Unemployment 8%

Final Disease --

Final Unemployment --

Multiplier Effect

Loop strength --

Higher values mean small shocks amplify more.

What you're seeing:

Adjust the sliders and run the simulation to see how feedback amplifies initial conditions.

Feedback loops reach equilibrium.

But where should we intervene to shift that equilibrium?

Breaking the Loop

Economists look for "leverage points" where intervention can break feedback and shift equilibrium. The key is finding exogenous variation in one variable that doesn't come from the other.

Target Health Directly

Reduce disease through prevention, screening, or treatment programs that work regardless of employment status.

Example: Expand Medicaid, fund community health workers, chronic disease management programs.

Target Employment Directly

Create jobs or support wages in ways that don't depend on health status (at least initially).

Example: Job training subsidies, minimum wage increases, public works programs.

Identification Strategy

To measure one direction of causation, economists find shocks to X that don't directly affect Y except through X.

Example: A factory closure affects employment (job shock) but doesn't directly cause disease except through job loss.

Breaking feedback requires exogenous variation.

What does this mean for how we evaluate health programs?

Key Insight

These questions help identify when reverse causation or feedback loops threaten your analysis. They won't solve the identification problem, but they reveal where standard methods fail.

Could the outcome cause the exposure?

Before assuming X causes Y, ask whether Y could plausibly cause X. In health economics, this is common: healthier people earn more (health to income) but higher income enables better health (income to health).

What would it take to rule out reverse causation in your study?

What starts the loop?

In feedback systems, initial conditions matter. An external shock that affects only one side of the loop can help identify causal effects. Policy changes and natural experiments provide this.

What exogenous events affected your variables at different times?

Where are the leverage points?

Even in feedback systems, some connections are stronger than others. Understanding loop structure helps identify where intervention yields the biggest equilibrium shift per dollar spent.

Which link in the loop is most amenable to policy intervention?

What's the time structure?

If X takes years to affect Y but Y affects X quickly, careful timing can help. Panel data with enough periods can exploit these lags to identify one direction at a time.

How quickly does each causal path operate?

Concepts Demonstrated in This Lab

Reverse causation: when the presumed outcome actually causes the presumed exposure

Feedback loops: when two variables mutually cause each other, creating amplification

Equilibrium: the stable state where feedback effects balance out

Leverage points: places where intervention can shift the equilibrium most efficiently

Exogenous variation: changes in one variable that don't come from the feedback loop

Key Takeaway

Correlation between X and Y doesn't tell us whether X causes Y, Y causes X, or both. When variables influence each other in feedback loops, standard regression can't identify causal effects. The solution isn't more controls. It's finding exogenous variation that affects one variable without coming from the feedback system itself. Natural experiments, policy discontinuities, and timing differences provide this. This is what economists mean by "finding an instrument."
